| 名称: |

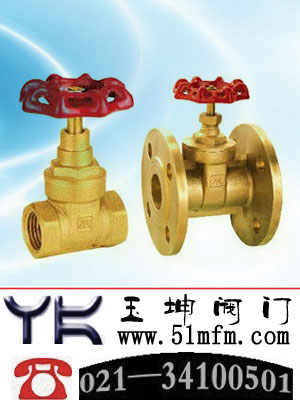

黄铜闸阀 |
| 型号: |
Z11W、Z41W |
| 口径: |
DN10-DN100 |
| 压力: |
0.1Mpa-2.5Mpa |
| 材质: |
黄铜、不锈钢 |
| 简介: |
上海玉坤阀门有限公司【黄铜闸阀】系列。欢迎您向服务部来电咨询。服务电话：021-34100501
|
|
|
 上海玉坤阀门有限公司黄铜闸阀产品详情 |
|
黄铜闸阀螺纹连接主要规格尺寸：
|
DN |
SIZE |
A |
B |
C |
D |
G |
|
10 |
3/8 |
42 |
9.5 |
66.5 |
45 |
3/8 |
|
15 |
1/2 |
43 |
12.8 |
71 |
54 |
1/2 |
|
20 |
3/4 |
46 |
17.5 |
77 |
54 |
3/4 |
|
25 |
1 |
53 |
22 |
89 |
60 |
1 |
|
32 |
11/4 |
55 |
27 |
101 |
68 |
11/4 |
|
40 |
11/2 |
58 |
34 |
111 |
72 |
11/2 |
|
50 |
2 |
66.5 |
45 |
128 |
80 |
2 |
黄铜闸阀法兰连接主要规格尺寸：
|
DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
|
A |
81 |
90 |
100 |
110 |
120 |
120 |
140 |
160 |
180 |
|
B |
15 |
20 |
25 |
32 |
38 |
45 |
55.5 |
67.5 |
90 |
|
C |
78.5 |
88.5 |
97.5 |
124.5 |
137.5 |
1365 |
166 |
196.5 |
239.5 |
|
D |
60 |
60 |
60 |
80 |
80 |
108 |
126 |
179 |
200 |
|
D1 |
95 |
105 |
115 |
140 |
150 |
160 |
180 |
195 |
215 |
|
￠D |
14 |
14 |
14 |
18 |
18 |
18 |
18 |
18 |
18 |
|
n |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
8 |
8 | | |
